No.1 Fully Auto Goods Hoist Manufacturer
in Malaysia
POWERTECHNIC is the only company using Europe hoist, Fast Speed Auto Door and Full Auto System in the market, the brand new developed system provides maximum convenience to the user and greatly reduce workload and increase efficiency.
Door auto close and open
Trackless door system to ensure smooth operation
Faster speed to increase working efficiency
Smart Control to reduce workload
Advantages by having Powertechnic premium Goods Hoist
Brand Image
Help to build your customer trust.
Time
Increasing business competitiveness with highly saving on goods transferring time.
Labour
Reducing of manpower dependency.
Space
Workspace is begin fully utilised.
Cost
Saving on company operating cost.
Reliability
A reliable investments which could last for decades.
Premium Features
Smart Control System
Motion Sensor
Faster Travelling
Save Space Design
Auto Door
Dual Speed Hoist
Overload Protection
Europe Hoist
Standard Features
Buffer Spring
Electrical Interlocking
Safety Catch Mechanism
Door Limit Switches
Over Travelling Safety Switches
Digital Display

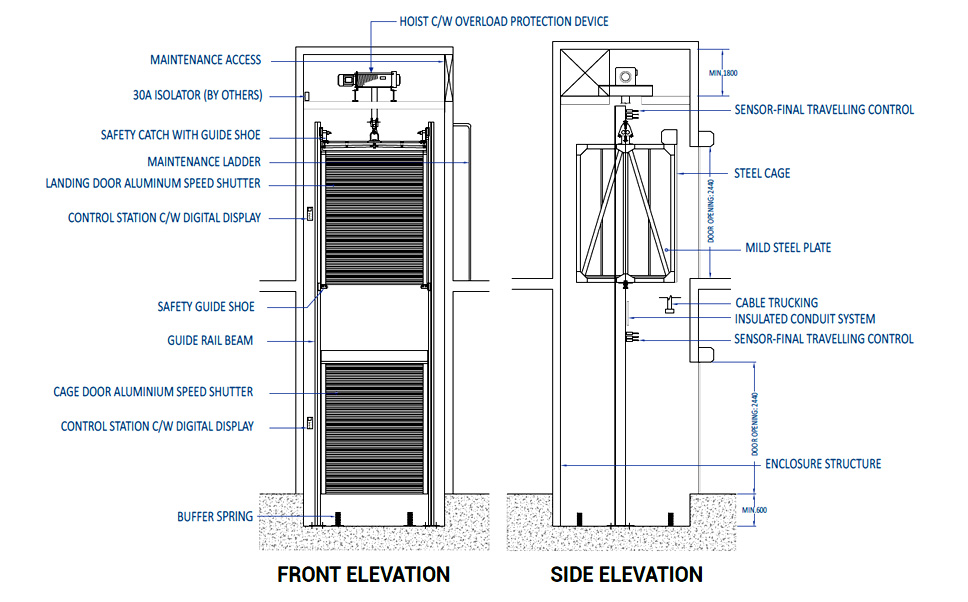

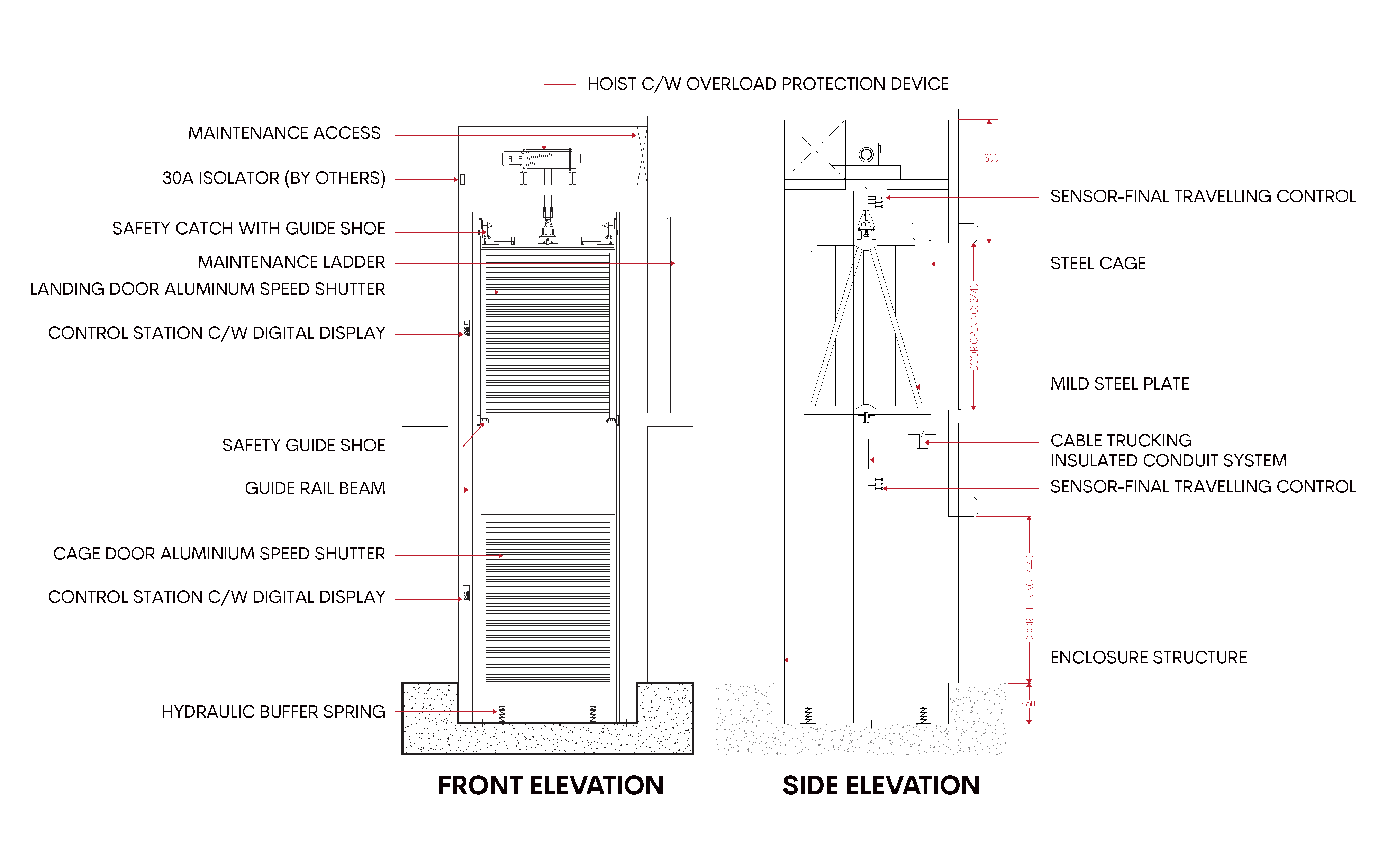

Technical Specification
| Cage Size | 1830 X 1830 X 2130 (MM) |
| 1830 X 1830 X 2440 (MM) | |
| 1530 X 1530 X 2130 (MM) | |
| 1530 X 1530 X 2440 (MM) | |
| Safe Working Load | 2000KG / by using 3200KG wire rope hoist c/w overload protection |
| Hoist Brand | Europe Standard Hoist |
| Door Opening Speed | 100mm/sec |
| Landing / Cage Door | Fast Speed Auto Door |
| Control Mode | Smart Control System, Calling station at all floor |
| Door Rail | Trackless |

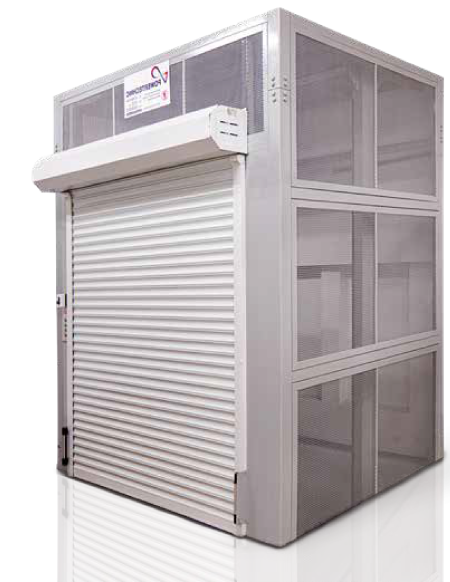

GOODS HOIST

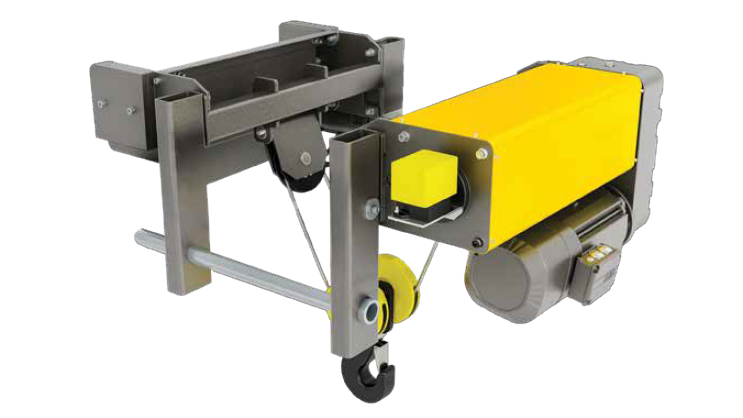

Europe Hoist
50 years of experience in development and production of hoisting mechanisms.
Our Hoist bear the CE mark for compliance with the Machinery Directive 2006/42/EC providing the regulatory basis for health and safety requirements at European Union level.
Advantages Of Our Hoist
High Tensile Wire Rope
Hoisting Limit Switches
Wire Rope Guide
Overload Protection System

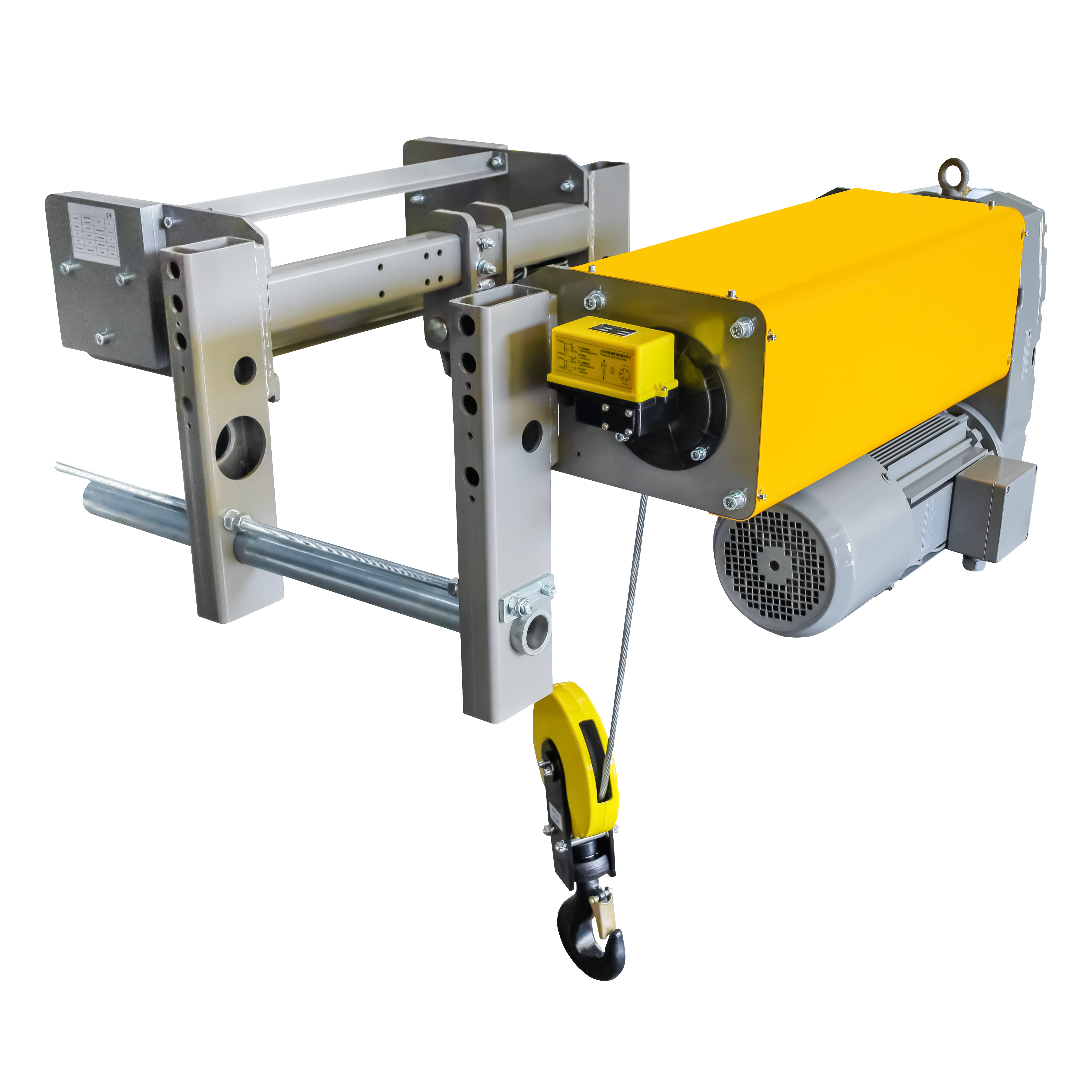

Hoist Specification
| HOIST TYPE | Foot Mounted Electric Wire Rope Hoist |
| HOIST MODEL | RVB3-1 |
| HOIST CAPACITY | 2000kg (2 Ton) |
| LIFTING HEIGHT | 9 / 12 meter |
| ROPE REEVING | 2 / 1 |
| LIFTING SPEED | 10m / 1.6min |
| LIFTING MOTOR | 6.1 / 1.00 Kw |
| ROPE DIAMETER | ø10mm |
| POWER SUPPLY | 415V, 50Hz, 3 Phase |
Safety Features
Programmable Logic Controller
Overload Protection System
Safety Catch Mechanism
Over Travelling Safety Switches
Buffer Springs
Motion Sensor
Hoisting Rope Guide
Door Limit Switches
Electrical Door Safety Lock

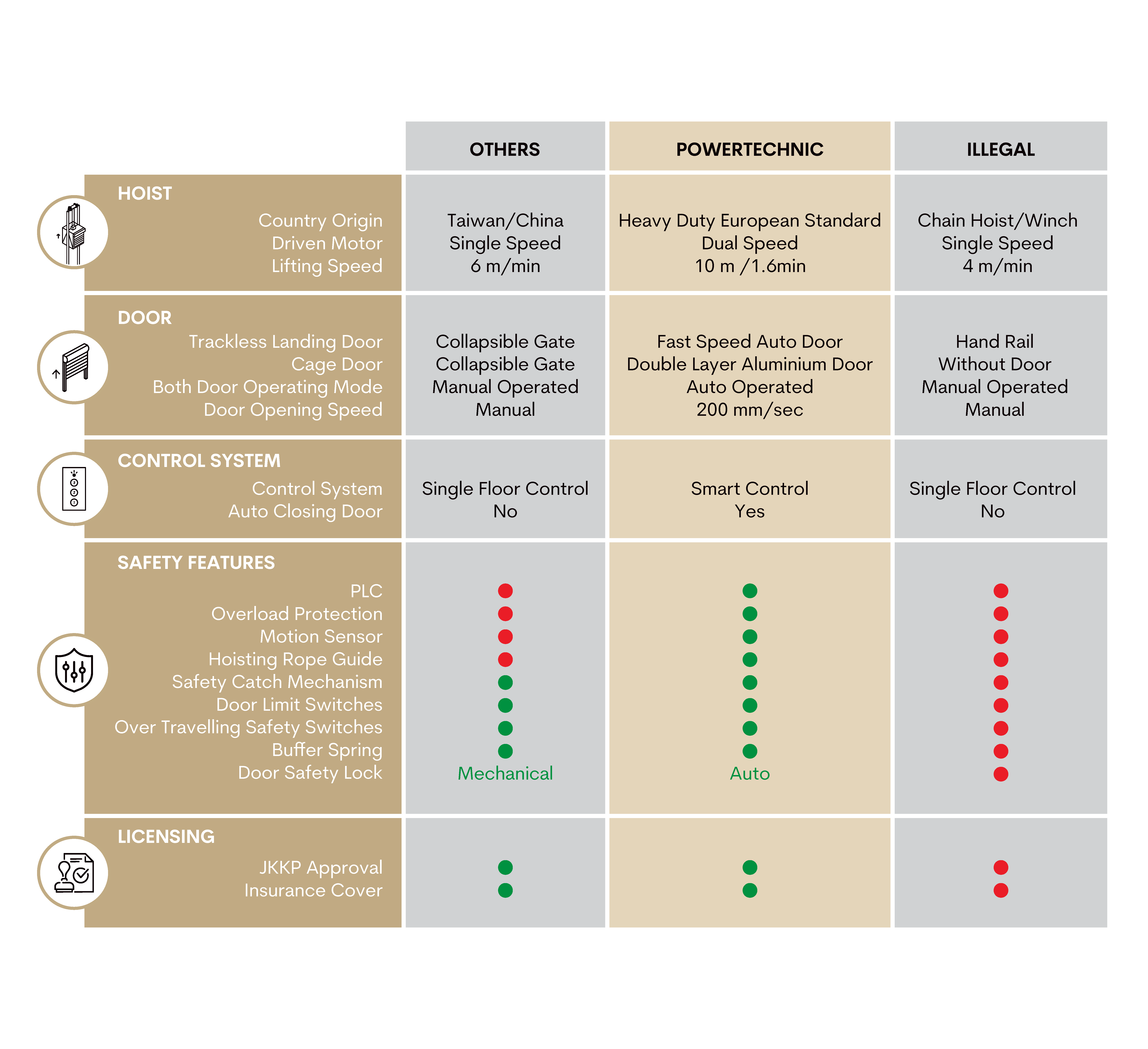

Why Us
GOODS HOIST
Download Our Goods Hoist Catalogue for More Details
24-Hour On-Call Service
We will try our very best to reply you as soon as possible
(2-Hour Response Time).
(2-Hour Response Time).
